Prefabricated Steel Girder Bridges

Quick custom bridging solutions for many vehicular applications

Strong, lightweight Steel Girder Bridges to accelerate your project

Algonquin Bridge offers a diverse portfolio of Steel Girder Bridges that can address any bridging need. Our abilities and experience in providing completely prefabricated bridges have led to us becoming one of Canada’s leading prefabricated bridge manufacturers.

Get inspired; visit our Bridge Design Ideas Gallery >>

Strong, yet lightweight, Steel Girder Bridges from Algonquin Bridge ship and install quickly on any foundation type and without the need for poured concrete or specialized bridge construction companies, making them perfect for accelerated bridge construction.

Discover the superior quality of our factory-built Girder Bridges
These Steel Girder Bridge superstructures are pre-engineered and prefabricated in the controlled environment of our CWB-certified facility, which offers precise tolerances, superior welding integrity and other key fabrication differentiators over location-built bridges.

Reduced road closure times
Algonquin’s Steel Girder Bridges can often be installed in one day, using local crews and on-hand equipment, saving you time and money in accelerated bridge construction projects.

Typical Steel Girder Bridge section
Modules are usually about 2.4 m (7.9′) wide for shipping on standard trailers. Lengths can reach up to 27.4 m (90′). Lengths greater than this will have a field-bolted longitudinal splice. Custom lengths and widths are easily accommodated.

Package up your Steel Girder Bridge and save
Add value to your Steel Girder Bridge project by packaging it with one of our fast, flexible and historically proven Abutment Systems, like MSE Retaining Walls or Bolt-A-Bin from our AIL Group sister company, Atlantic Industries Limited (AIL). Ask your Algonquin Technical Sales Representative for more details about The Algonquin Bridge System.

Ideal for permanent or temporary applications

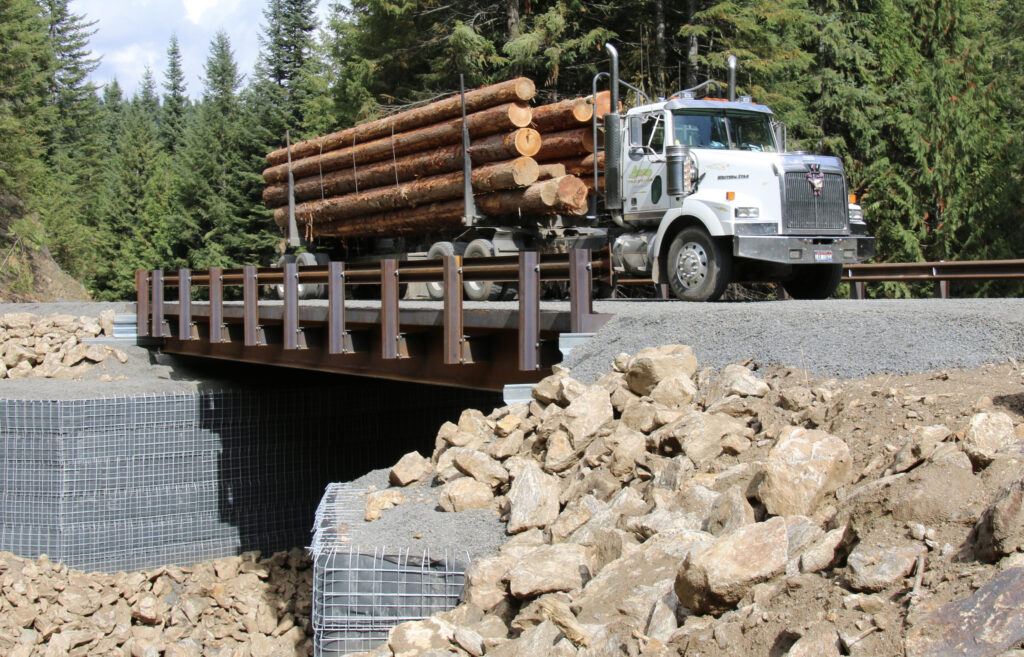

Algonquin’s Prefabricated Girder Bridges are favoured by municipalities, counties, transportation authorities and resource companies for stream crossings, road or rail overpasses, detour bridges and more.

Features and Benefits

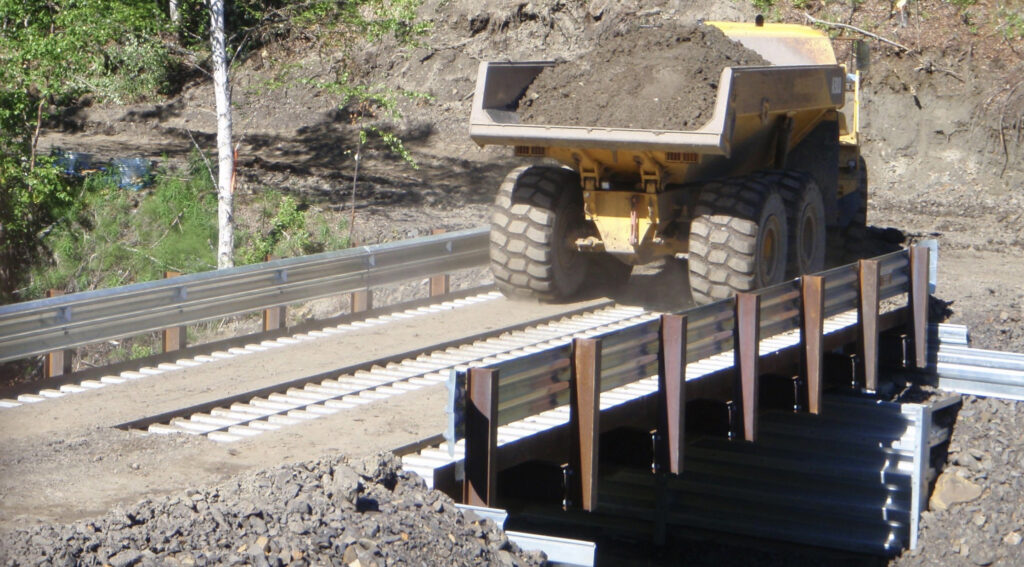

Strong: able to withstand heavy-duty loading
Open design, no overhead clearance restrictions
Permanent or temporary applications

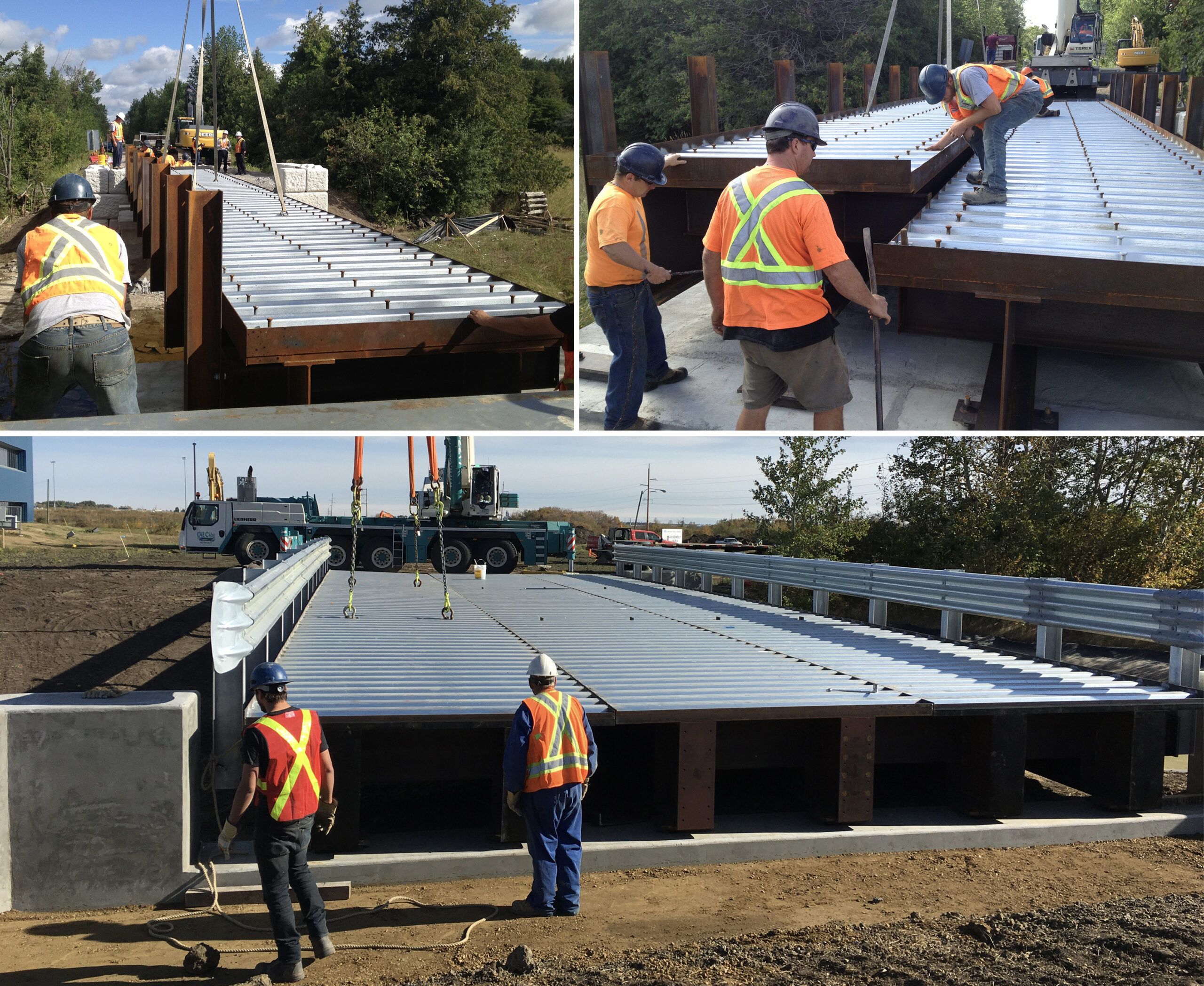

Pre-assembled in factory to ensure smooth assembly and setting
Easy installation, even in rugged terrain
Accelerated installation vs. traditional site-built structures
Shorter bridges can be installed with excavators or wheel loaders
Use local contractors or your own crew
Steel decking, bearing plates and pads

Options

Steel deck wearing surfaces: Asphalt, poured or precast concrete, epoxy aggregate anti-skid coating, timber or gravel
Finishes: Naturally weathering, painted or galvanized Explore finish options >>
Sidewalks and utility corridors
Curb or rail system
Steel backwall systems
MSE Retaining Walls or Bolt-A-Bin abutments
Skewed ends to suit site
Added faux trusses to enhance design
Package it up and save with one of our Algonquin Bridge Systems >>

Certifications

CWB, CSA Standard 47.1, Division 2

BROCHURES & VIDEOS

Algonquin Bridge Connecting Communities Brochure

Learn more about accelerated bridge construction options in this 20-page brochure outlining the full range of Algonquin’s made-in-Canada solutions like: Modular Panel Bridge Systems, Custom Prefabricated Girder Bridges and Pedestrian/Trail Bridges and Bridge/Abutment Packages.

Download
(5.43 MB)
Prefabricated Vehicular Girder Bridge, Waiparous Creek, Alberta

Fly over, under and across this 28.5 m single-lane Algonquin Vehicular Girder Bridge on a recreational driving trail in the Waiparous Creek Provincial Recreation Area, deep in the Rocky Mountain foothills northwest of Calgary.

Play

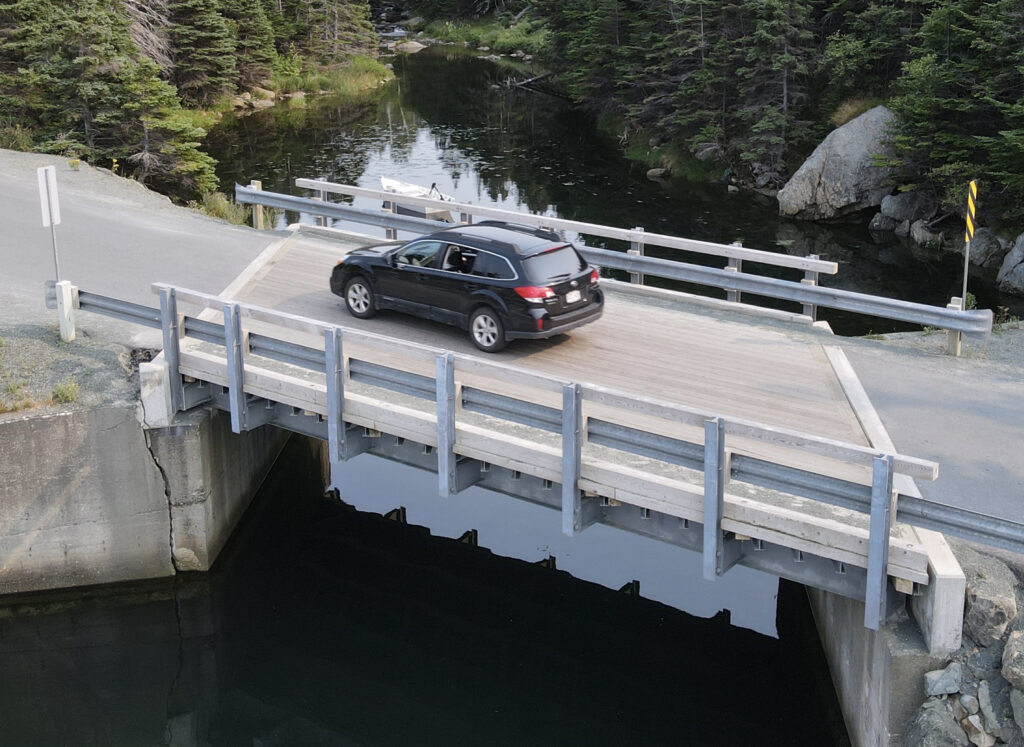

Steel Girder Bridge, Portugal Cove - St. Phillip’s, NL

Take a drone-video tour of this Algonquin Steel Girder Bridge with galvanized finish and skewed ends that reconnected the picturesque harbour drive in Portugal Cove - St. Phillip’s, NL.

Play
