Adaptable and redeployable bridge systems for permanent or temporary applications
The Algonquin R800 is the only Canadian-made Modular Panel Bridge System
Algonquin R800 Modular Panel Bridge Systems are innovative and economical bridging solutions for a wide array of permanent or temporary applications.
Modern iterations of the classic “Bailey Bridge” design
Algonquin Modular Panel Bridge Systems are the latest evolution of the original “Bailey Bridge” system that played a key part in Second World War troop movements and reconstruction efforts.
These Canadian-made bridge systems are inventoried and ready to ship across Canada or internationally. They are easy to handle/assemble and are completely reusable.
Designs can be configured for a wide range of roadway widths up to three lanes. Driving surfaces can be steel deck panels with an epoxy aggregate anti-skid coating, asphalt-ready steel decking or timber.
Whatever your requirements, Algonquin R800 Bridges are resilient, sustainable and dependable bridging solutions.
Ready to ship for emergency or detour bridge requirements
Algonquin Bridge maintains an inventory of these popular systems ready to be shipped anywhere in Canada for permanent or temporary applications, like detour bridges or emergency bridge washout replacements. More about Emergency Bridges
These “Bailey Bridge” style systems are easy to assemble, install and re-use

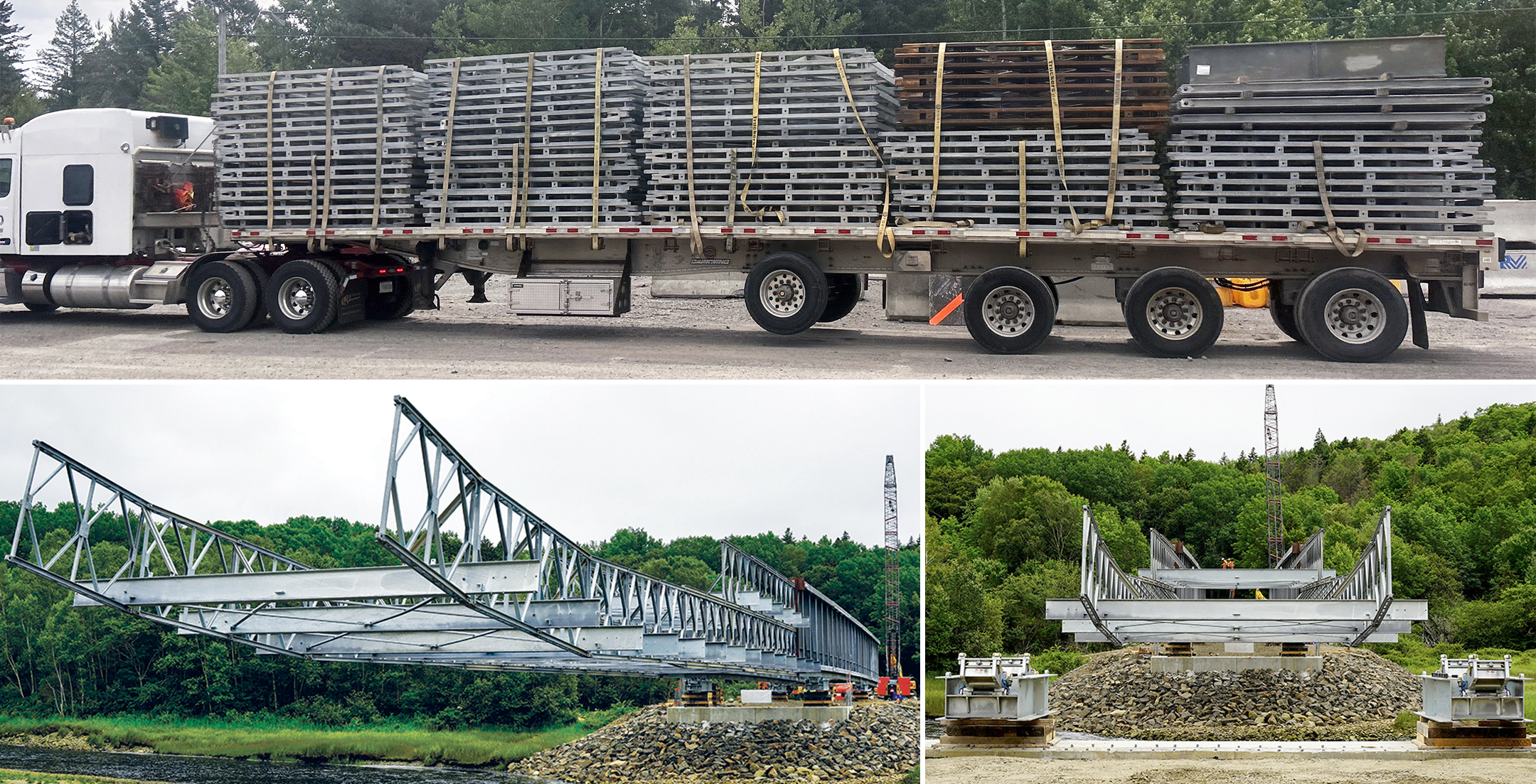

All components are hot dip-galvanized for maximum durability. They are easy to assemble with local crews and are completely reusable. Assembled bridges can be cantilever launched from one side or they can be crane lifted into place.
Emergency or detour rental bridge program
Reduce your costs and free up capital for other purposes. Short- or long-term bridge rentals can be arranged with Canada-wide distribution and support. More about Rental Bridges.
BROCHURES & VIDEOS
-
Algonquin R800 Modular Panel Bridges
Get the details on these adaptable and re-usable bridging systems that are suitable for a wide array of permanent or temporary applications.
Download(1.54 MB)
-
Algonquin Bridge Connecting Communities Brochure
Learn more about accelerated bridge construction options in this 20-page brochure outlining the full range of Algonquin’s made-in-Canada solutions like: Modular Panel Bridge Systems, Custom Prefabricated Girder Bridges and Pedestrian/Trail Bridges and Bridge/Abutment Packages.
Download(5.43 MB)
-

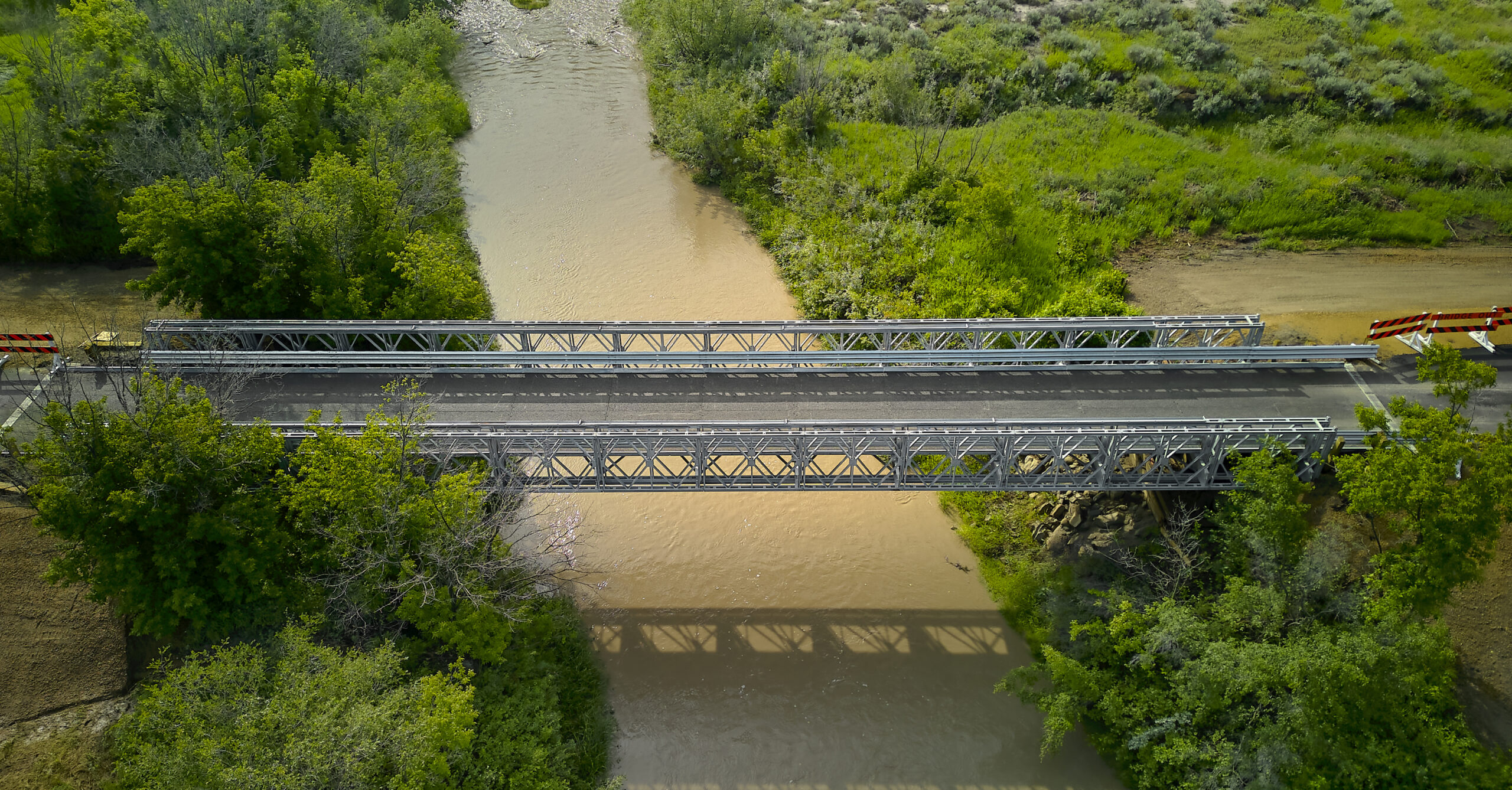

Algonquin Modular Panel Bridge, Wayne, AB
Check out this 36.6 m Algonquin Modular Panel Bridge that replaced one of “The 11 Bridges of Wayne” (https://www.youtube.com/watch?v=L28oFCAnY9E) along a 6 km stretch of Highway 10X leading to the historic “ghost town” of Wayne, near Drumheller, AB.
-

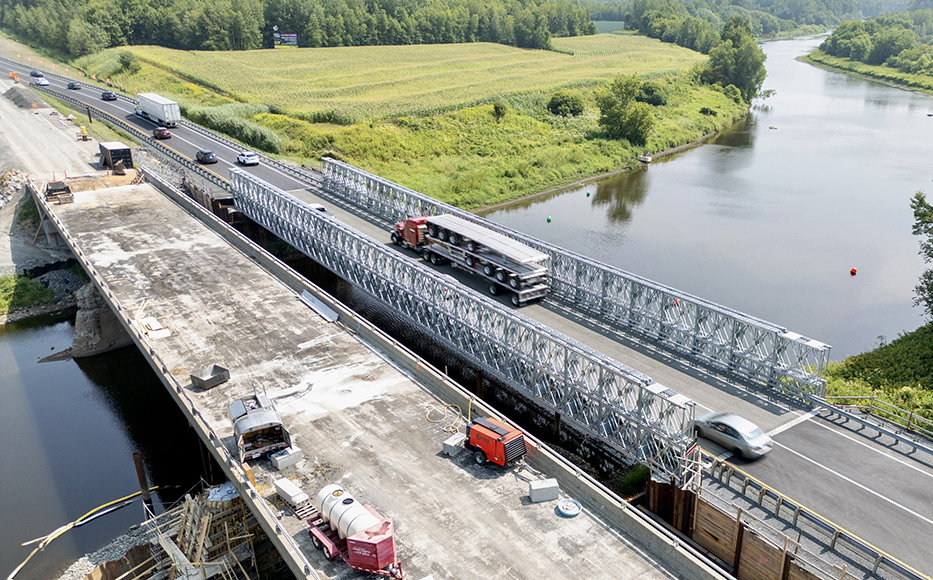

Algonquin R800 Modular Panel Bridge, Notre-Dame-du-Bon-Conseil, QC
Our made-in-Canada R800 Modular Panel Bridge System is being used for a longer-term, 18-month rental detour bridge in support of a bridge rehab project on busy Autoroute 20 over the Rivière Nicolet Sud-Ouest.
-

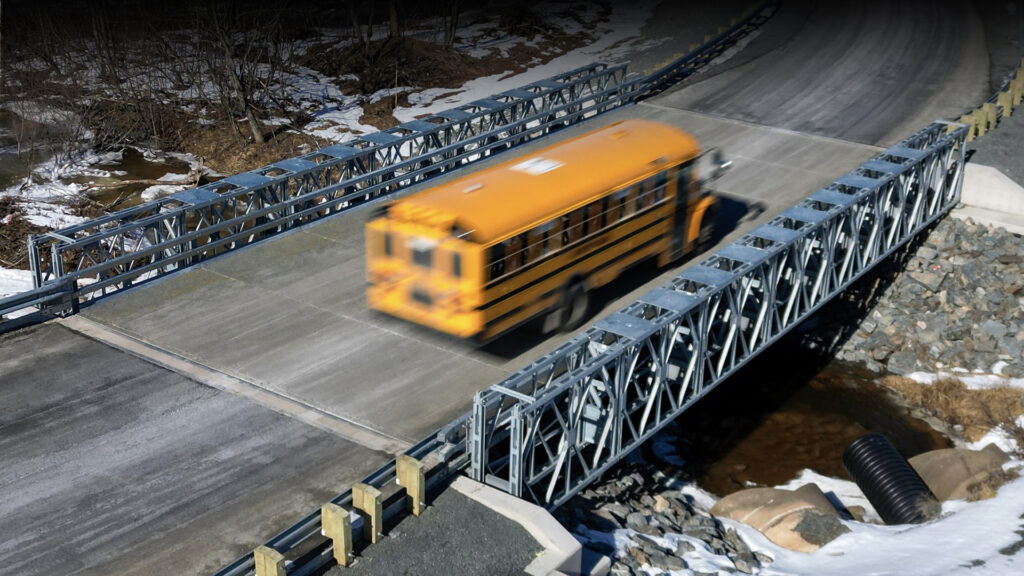

Algonquin R800 Modular Panel Bridge, Sipekne’katik First Nation, NS
The Brown Flats Bridge in the Sipekne’katik First Nation features epoxy-coated-aggregate deck panels and a durable galvanized finish. And, best of all, it’s made right here in Canada to be resilient, sustainable and dependable for many decades of service.
-
Seal Cove T’Railway Bridge, Conception Bay, NL
Take a drone-video tour of this trail bridge made from our versatile Algonquin R800 Modular Panel Bridge System. Economical, easy to install and — best of all — made right here in Canada.
-
Algonquin R800 Modular Panel Bridge, Ginoogaming First Nation, ON
Take a drone-video tour of this 27.4 m Algonquin R800 Modular Panel Bridge that provided a fast, permanent, made-in-Canada replacement for the Ginoogaming First Nation’s old bridge across the Making Ground River.
-
Salmon River Detour Bridge, Chipman, NB
Take a video tour of this Modular Bridge System serving as a detour on NB Route 10 while a new bridge is being built. The 195 m span was cantilever launched across the river with the help of cranes on construction staging.
-

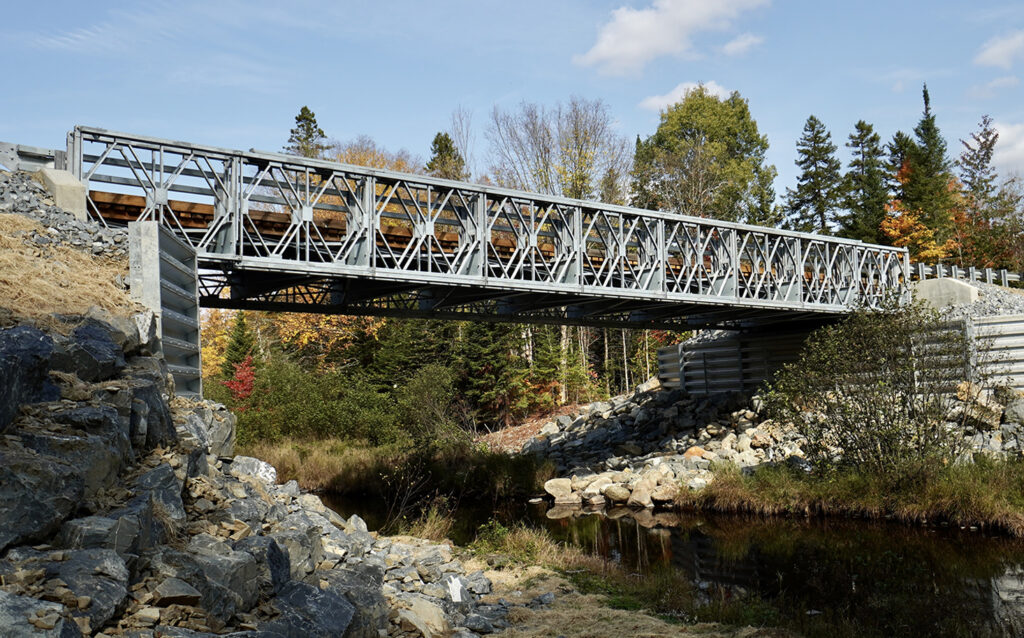

Algonquin R800 Modular Panel Bridge for Forestry, Napadogan, NB
With a 100-tonne design load, this heavy-duty, made-in-Canada Algonquin R800 Modular Panel Bridge supports 12’-wide, off-highway logging trucks and was packaged with AIL’s Bolt-A-Bin Abutment System for an economical solution for this remote area.
-

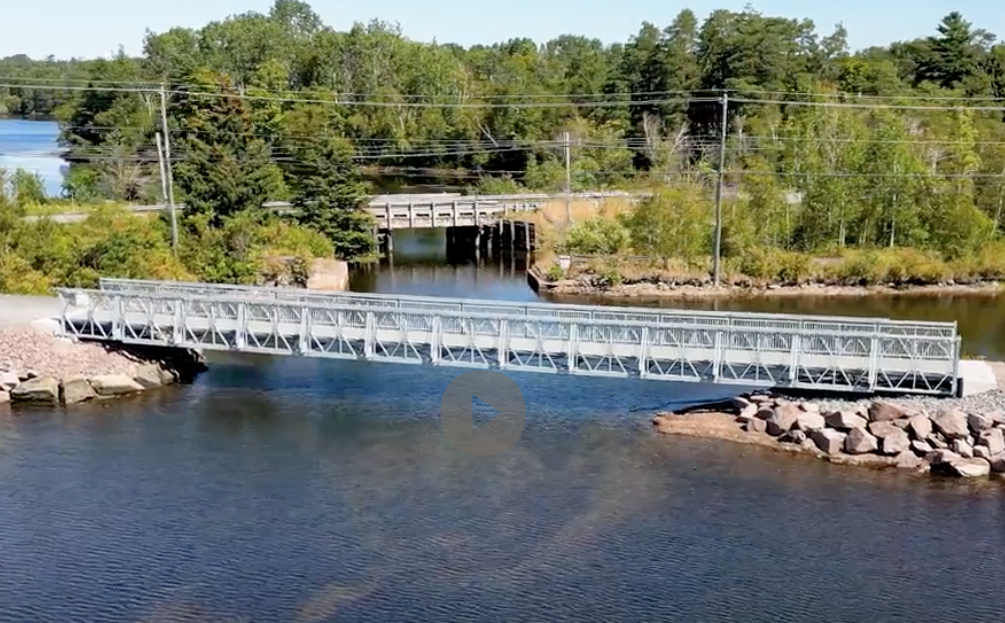

Jitney Trail Modular Panel Bridge, Pictou, NS
This trail bridge solution uses the made-in-Canada Algonquin R800 Modular Panel Bridge System to create a 40 m by 3.15 m river crossing with vertical picket safety rails and epoxy-aggregate coated steel decking panels. The new bridge reconnects local trails to the Trans-Canada Trail system.
-
Algonquin Modular Bridge System, Quick, BC
Take a video tour of this 93.6 m replacement bridge over the Bulkley River in Quick, BC. The two spans were cantilever launched from each side to meet at the existing centre pier. We also designed and supplied custom approach ramps and a prefabricated pedestal bearing system.
-
Scott Street Detour Bridge, Ottawa, ON
One of seven bridges Algonquin supplied for Ottawa’s Stage 2 LRT Expansion, this 67 m temporary detour bridge maintains the Scott Street dedicated OC Transpo bus route while the LRT system is being constructed in the corridor below.
-
Temporary Detour Bridge, Morell, PE
See how this 134.2 m Algonquin Modular Bridge System dropped in to serve as a temporary detour bridge as part of the Morell River bridge replacement project in Prince Edward Island.
-
Algonquin Modular Detour Bridges, Coles Island, NB
Take a 360° video tour of these triple-span Algonquin Modular Detour Bridges installed at picturesque Coles Island, NB.
-
Algonquin Modular Bridge System, Stoney Creek, NB
Take a drone-video tour of this 50 m Algonquin Modular Bridge System installed as a permanent washout replacement on Route 114. Its heavy-duty construction is able to withstand extreme highway loads.
-
Temporary Detour Bridge, Highway 6, Central BC
See how this Algonquin Modular Panel bridge dropped in to serve as a temporary detour bridge as part of the Cortiana Creek bridge replacement project for BC MoTI.
-
Algonquin Modular Bridge System, Fort Lawrence, NS
This drone video shows the ROW rail crossing with cambered end sections to help with double-stack rail car clearance.
-
Algonquin Modular Bridge System, South Bouctouche River, NB
Take a 360° video tour of this Algonquin Modular Bridge System stream crossing — a modern version of the classic Bailey Bridge design.
-
Modular Bridge crane lift install, Kawartha Lakes, ON
A crane lift installation method was used for this 24.5 m Algonquin Modular Bridge System, serving as a permanent crossing to a private cottage at Pigeon Lake.
-
Assembly and Cantilever Launch of a Modular Bridge System
View this animated video of how a typical Modular Bridge System is assembled and cantilever launched from one side without the need for heavy lifting equipment.
PHOTO GALLERY
-
Packaged solution: Modular Bridge with Bolt-A-Plate piers -
Temporary pedestrian bridge during interchange construction -
Packaged with Bolt-A-Bin Abutment System, Napadogan, NB -

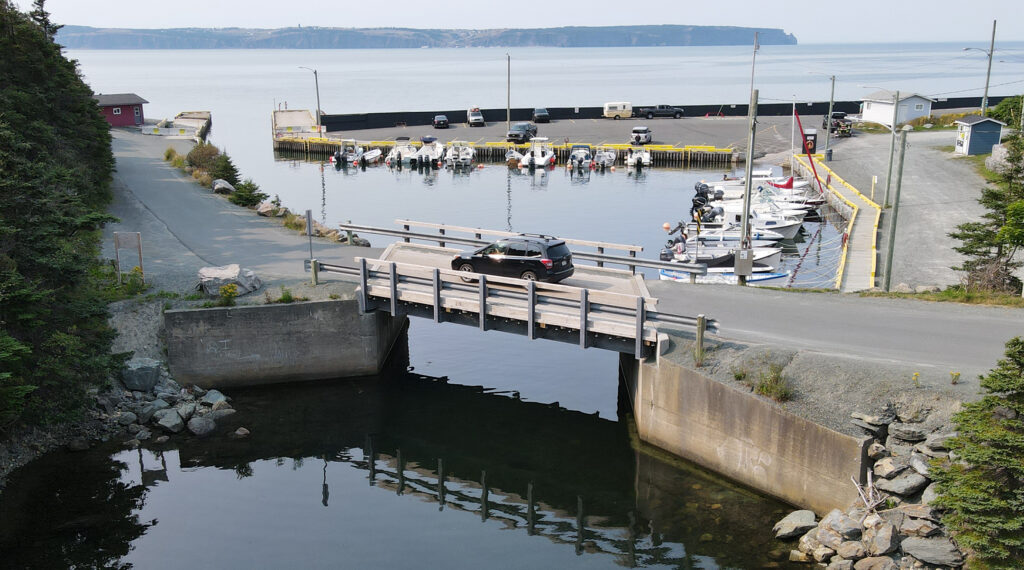

Trail bridge application, Portugal Cove, NL -
Highway stream crossing, Sipekne'katik First Nation, NS -
Trail bridge application, Pictou, NS -

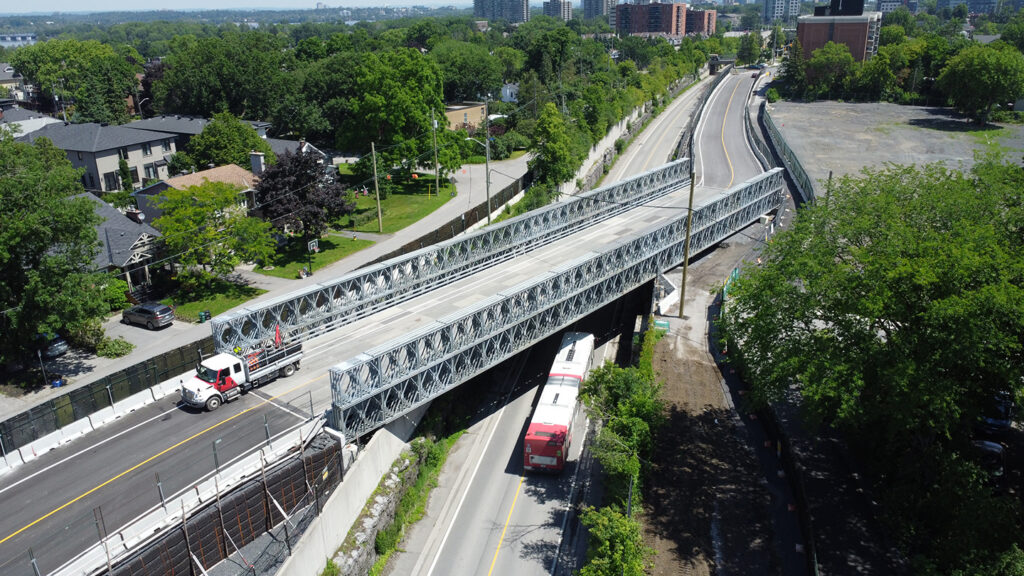

Temporary detour bridge, Ottawa, ON -
Railway overpass bridge application -
Construction access and utility bridge application -
Utility Bridge application, Halifax -

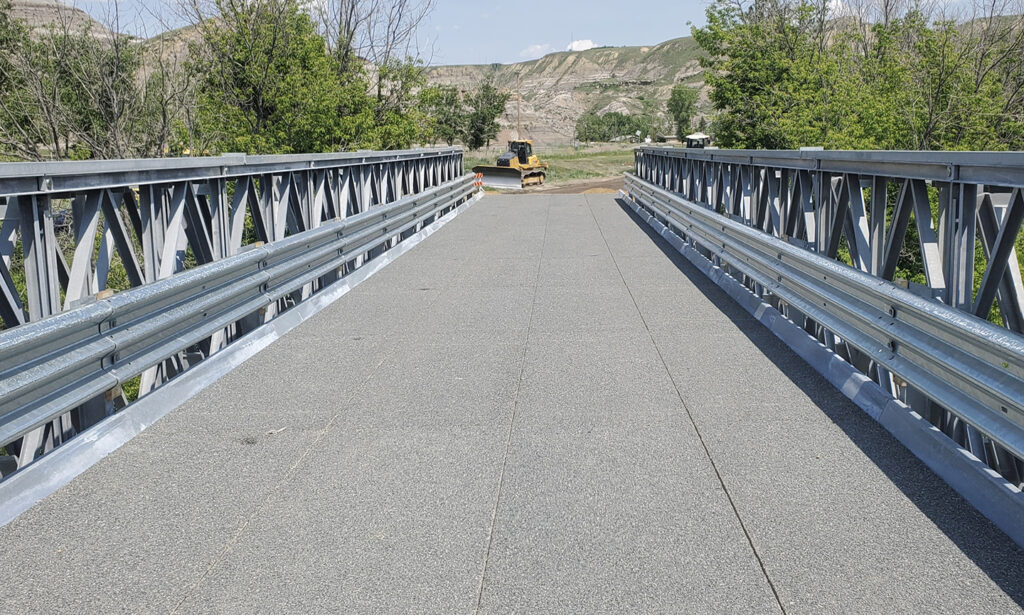

Epoxy-coated-aggregate steel deck panels -
Autoroute 20, Notre-Dame-du-Bon-Conseil, QC
