Mission-critical bridging systems for military and humanitarian operations
For more than 30 years, Algonquin Bridge has supplied dependable steel bridge structures across Canada. Today, we continue to advance our products and capabilities to support evolving military, humanitarian and civil infrastructure requirements.
Designed and fabricated in Canada

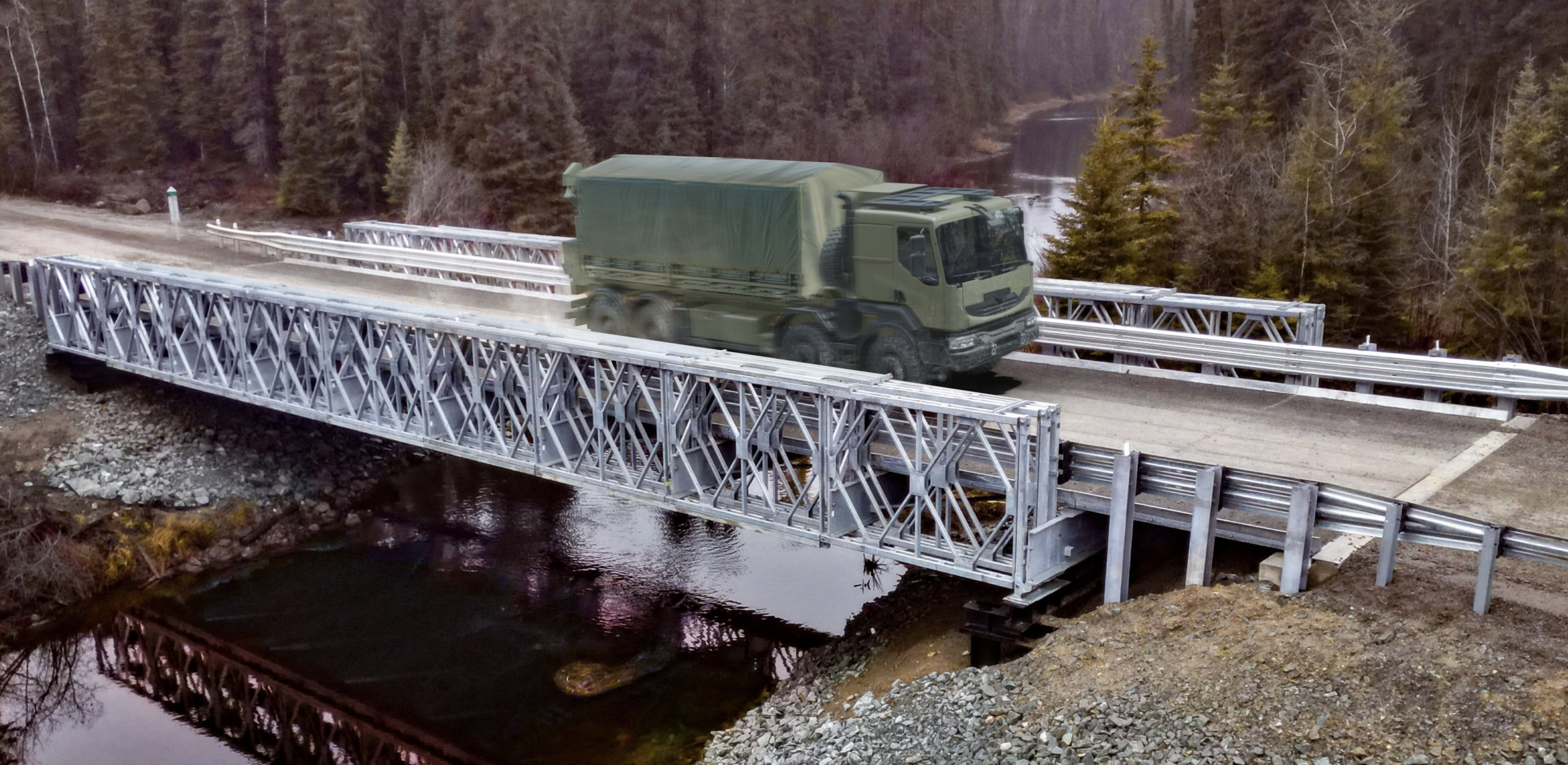

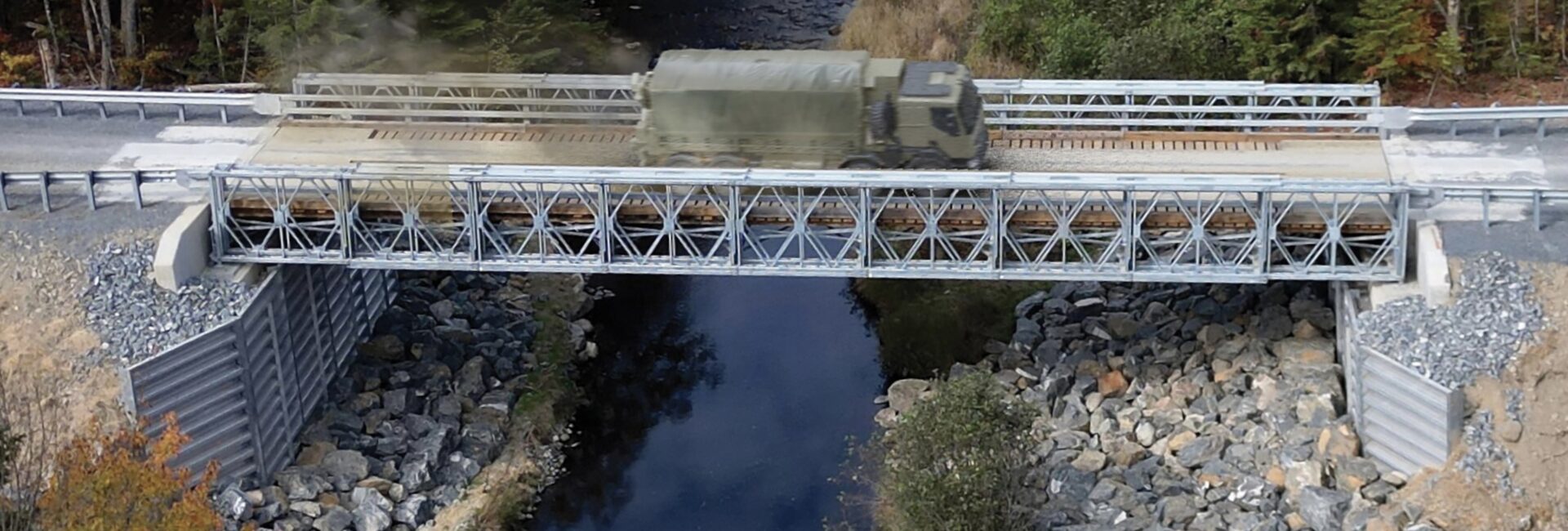

The R800 Modular Panel Bridge System is the only Canadian-manufactured system of its kind. Built for strength, speed and flexibility, it delivers reliable capability and value for line of communication, humanitarian response and civilian bridging applications.
- Designed and manufactured in Thorndale, Ontario, with substantial Canadian steel content
- Produced in a modern, automated facility with robotic, solar-assisted and scalable production capabilities
- Supported by a secure Canadian supply chain that strengthens domestic industrial resilience and sovereignty
- Delivered by experienced bilingual professionals who specialize in bridging solutions
- Backed by in-house engineering, on-site technical support and training services
- Enhanced through third-party testing and analysis with university laboratory partners
- Developed in partnership with recognized military bridge engineering specialists
The Algonquin R800 Modular Panel Bridge System is an innovative, economical solution for permanent or temporary bridging needs. Components are inventoried by Algonquin Bridge and ready to ship across Canada or internationally for efficient assembly using local crews and equipment.
- Made with more than 75% Canadian steel
- Ready to ship anywhere
- Suitable for permanent or temporary applications
- Ideal for Northern and Arctic installations
- Available with short-term or long-term rental options
- Rapid deployment with cantilever launching from one side
- Adjustable ramp system connects roadway to deck
- Built with 3.048 m (10′) pinned panels
- Supports clear spans in excess of 82.3 m (270′)
- Standard roadway widths from 3.15 m (10.2′) to 10.5 m (34.5′)
- Meets loading, design and testing requirements in AEP 4865
- Uses steel that complies with CSA G40.20
Standard driving surfaces use steel deck panels with an epoxy aggregate anti-skid coating designed to resist mechanical wear from heavy military vehicles. Asphalt-ready steel decking and timber surfaces are also available.
R800 bridges are designed and constructed to support heavy tracked and wheeled military tanks and armoured vehicles up to MLC 120T/150W. For dual-use applications, they can also meet civil bridge code standards, subject to applicable provincial live-load requirements.
Keeping missions connected
Our in-house team supports every stage of the project cycle, from engineering and site assistance to training programs. Algonquin Bridge is an active member of the Canadian Association of Defence and Security Industries and the Ontario Defence Association.
